Electric Motors, Motors
STCL Single Phase Foot Mount Asynchronous Motor 2HP 1400RPM High Speed
Availability:
1 in stock
- Item Code: 100461
- Item Condition: Old (with original windings)
- Type: YL90L-2
- Maximum Speed: 1,400 RPM
- Voltage Range: 220 – 240 V AC
- Full Load Current: 9.4 A
- Power Output: 2 HP
- Frequency: 50 Hz
- Power Factor: 0.95
- Housing Material: Cast Iron
- Motor Frame Size: IEC 90L
- Mounting Style: Base/Foot
- Mounting Hole Width: 140 mm
- Mounting Hole Length: 100 mm
- Mounting Holes Size: M8
- Shaft Diameter: 24 mm
- Shaft Length: 50 mm
- Overall Width: 165 mm
- Overall Length:
KSh 7,000.00
1 in stock
CompareSTCL Single Phase Foot Mount Asynchronous Motor 2HP 1400RPM High Speed: This type of motor bolts at the base angle and has a keyed shaft. You can wire for clockwise or counterclockwise rotation.
Specifications
| Item Condition: | Old (with original winding) |
| Type: | YL90L-2 |
| Maximum Speed: | 1,400 RPM |
| Electrical Phase: | 1 |
| Voltage Range: | 220 – 240 V AC |
| Full Load Current: | 9.4 A |
| Power Output: | 2 HP |
| Frequency: | 50 Hz |
| Power Factor: | 0.95 |
| Housing Material: | Cast Iron |
| Housing Color: | Grey |
| Motor Frame Size: | IEC 90L |
| Mounting Style: | Base |
| Mounting Hole Width: | 140 mm |
| Mounting Hole Length: | 100 mm |
| Mounting Hole Length: | 125 mm |
| Mounting Holes Size: | M8 |
| Shaft Diameter: | 24 mm |
| Shaft Length: | 50 mm |
| Shaft Type: | Keyed |
| Shaft Keyway Width: | |
| Shaft Keyway Depth: | |
| Overall Width: | 165 mm |
| Overall Length: | |
| Environmental Rating: | IP54 |
| Operating Environment: | Wet and Dusty |
| Insulation Class: | F |
| Bearing Type: | Ball |
| Features: |
|
| Country of Origin | Peoples Republic of China |
| Related Names: | Plate Casters with Rubber Wheels |
| Ranking Keywords: | |
| Related Search: |
Based on 0 reviews
Be the first to review “STCL Single Phase Foot Mount Asynchronous Motor 2HP 1400RPM High Speed”
Related products
-
Electric Motors, Motors

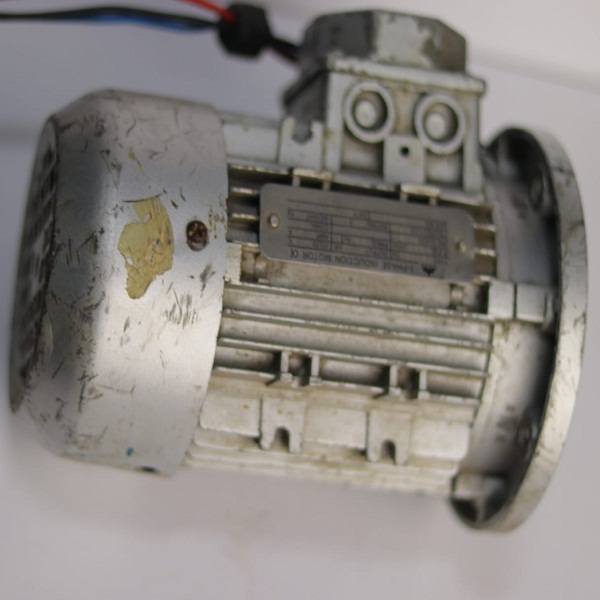

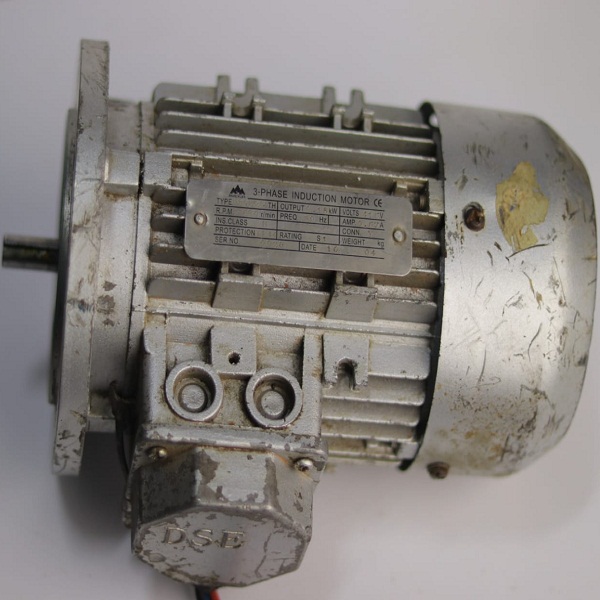

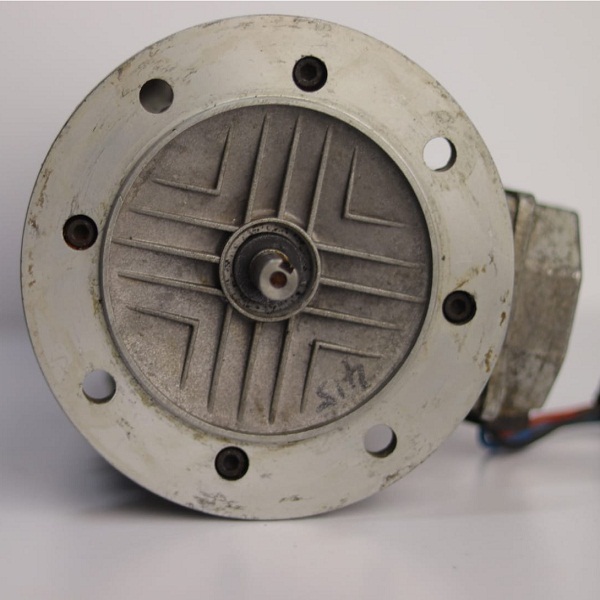

Shanchuan 3-phase Flange Mount Induction Motor 0.18kW 1400RPM
