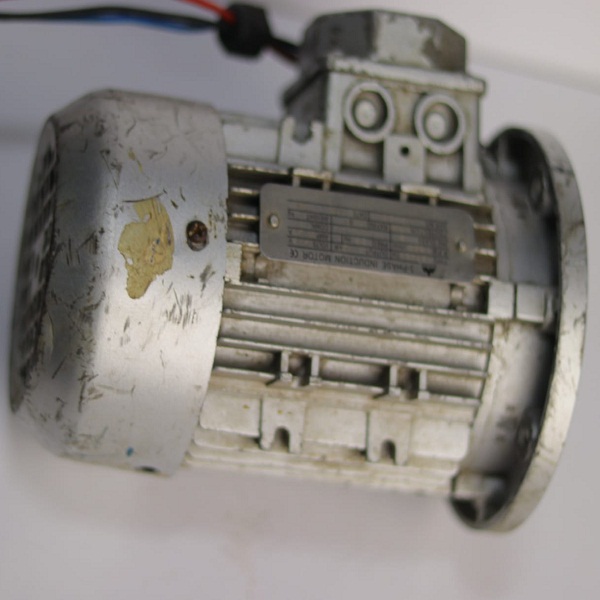

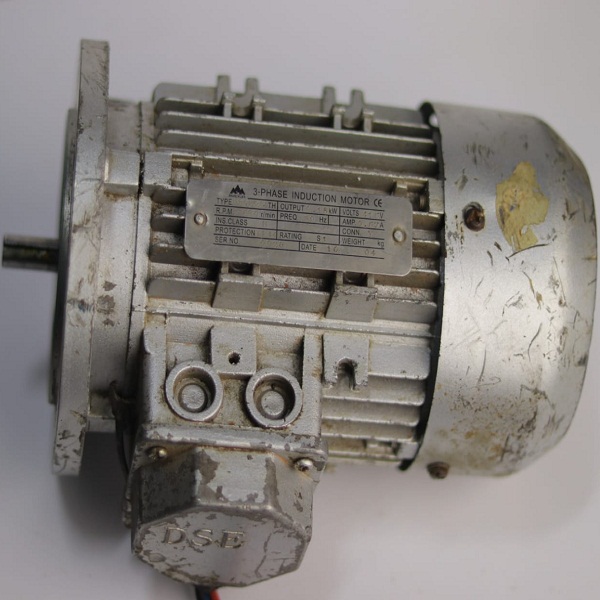

Shanchuan 3-phase Flange Mount Induction Motor 0.18kW 1400RPM
- Item Code: 100455
- Item Condition: Old (with original windings)
- Type: YS 6324
- Maximum Speed: 1,400 RPM
- Voltage: 415V AC
- Full Load Current: 0.57 A
- Power Output: 0.18kW
- Frequency: 50 Hz
- Connection Type: Star (Y)
- Housing Material: Aluminum
- Housing Color: Silver
- Motor Frame Size: IEC 63

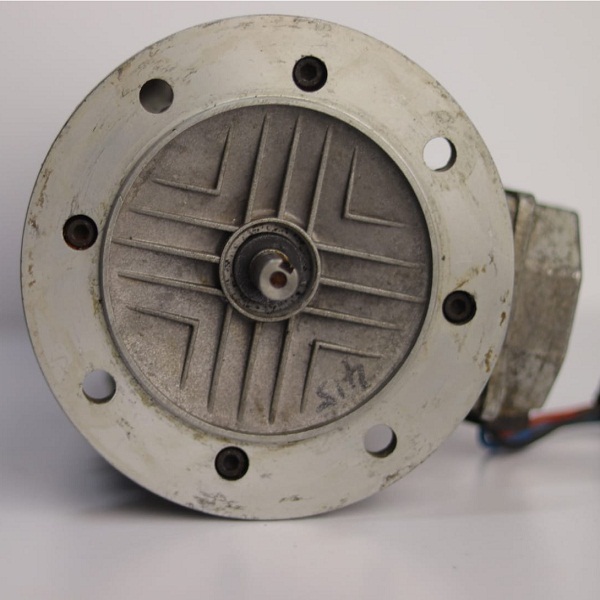

- Mounting Style: Flange
- Flange Type: B5
- Flange Diameter: 140mm
- Flange Spigot: 95mm
- Flange Pitch Circle Diameter (PCD): 115mm
- Flange Mounting Holes Size: M8
- Shaft Diameter: 11mm
- Shaft Length: 23mm
- Overall Length: 210mm
KSh 13,000.00
Shanchuan 3-phase Flange Mount Induction Motor 0.18kW 1400RPM: This ype of motor is also called a Face-Mount or C-face motor. It bolts directly to your equipment at any angle and has a keyed shaft. You can wire for clockwise or counterclockwise rotation.
This motor has a lightweight aluminium construction, complete with B5 flange mounting, and suits a wide range of industrial and commercial applications. They are rugged, reliable, of a high quality, and suit wet and dusty environments.
It is used in applications such as conveyor belts, air conditioners, packing equipment, fans, hydraulics, agricultural equipment and so on. If you use this motor you can be sure to improve efficiency and save space as it is more compact and runs smoother than its single phase counterparts, in addition to providing nearly twice the power.
Specifications
| Item Condition: | Old (with original winding) |
| Type: | YS 6324 |
| Maximum Speed: | 1,400 RPM |
| Electrical Phase: | 3 |
| Voltage: | 415V AC |
| Full Load Current: | 0.57 A |
| Power Output: | 0.18kW |
| Frequency: | 50 Hz |
| Connection Type: | Star (Y) |
| Housing Material: | Aluminum |
| Housing Color: | Silver |
| Motor Frame Size: | IEC 63 |
| Mounting Style: | Flange |
| Flange Type: | B5 |
| Flange Diameter: | 140mm |
| Flange Spigot: | 95mm |
| Flange Pitch Circle Diameter (PCD): | 115mm |
| Flange Mounting Holes Size: | M8 |
| Shaft Diameter: | 11mm |
| Shaft Length: | 23mm |
| Shaft Type: | Keyed |
| Shaft Keyway Width: | 3.7mm |
| Shaft Keyway Depth: | 2.0mm |
| Overall Length: | 210mm |
| Environmental Rating: | IP44 |
| Operating Environment: | Wet and Dusty |
| Insulation Class: | B |
| Bearing Type: | Ball |
| Features: |
|
| Country of Origin | Peoples Republic of China |
