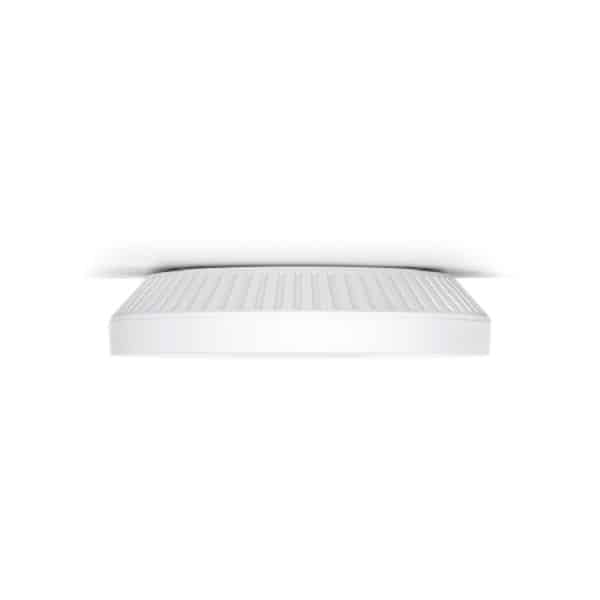

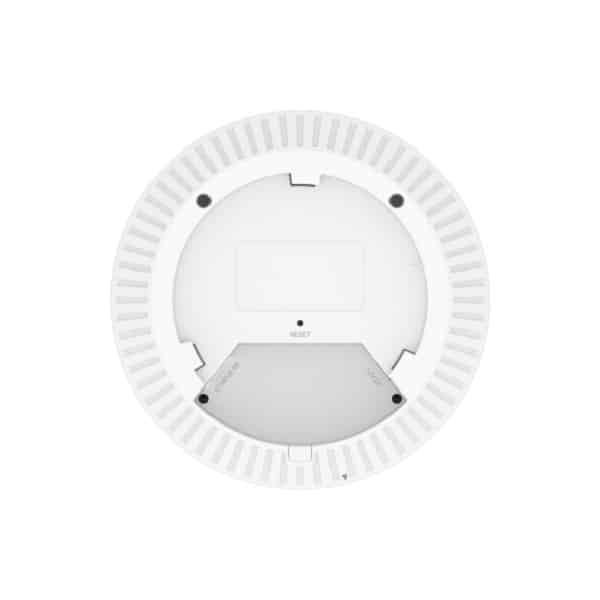

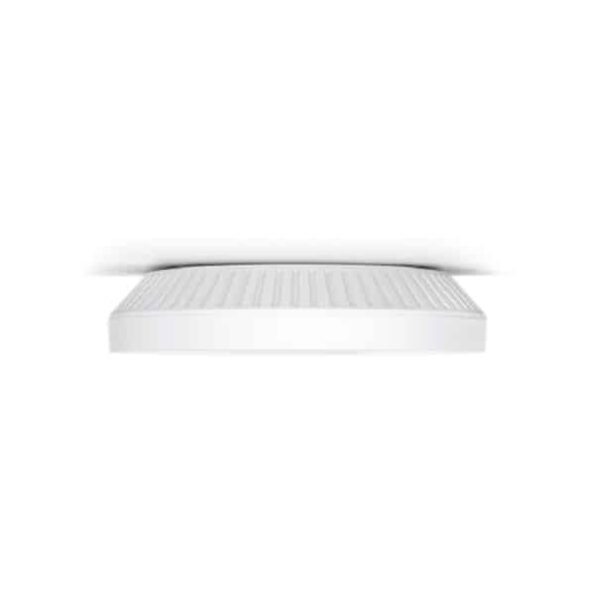

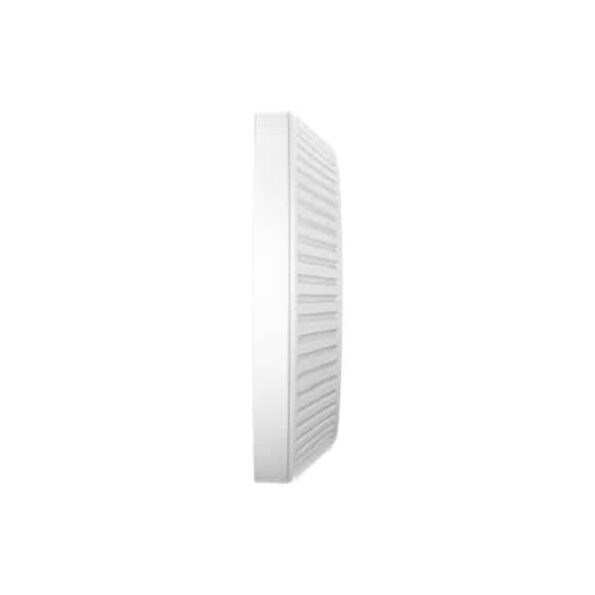

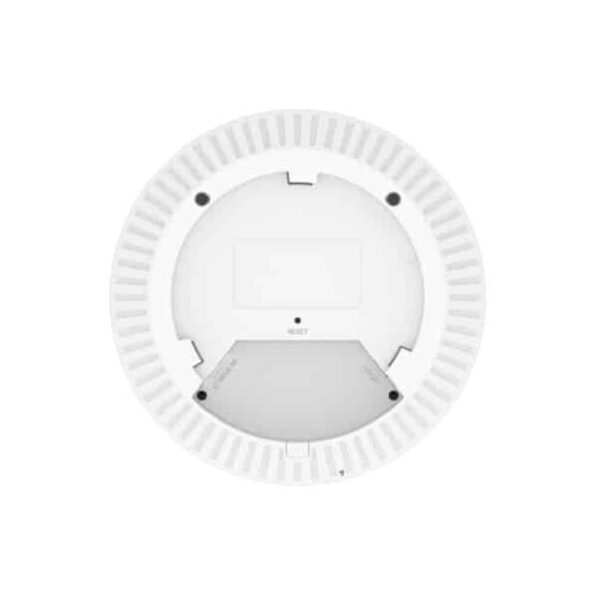

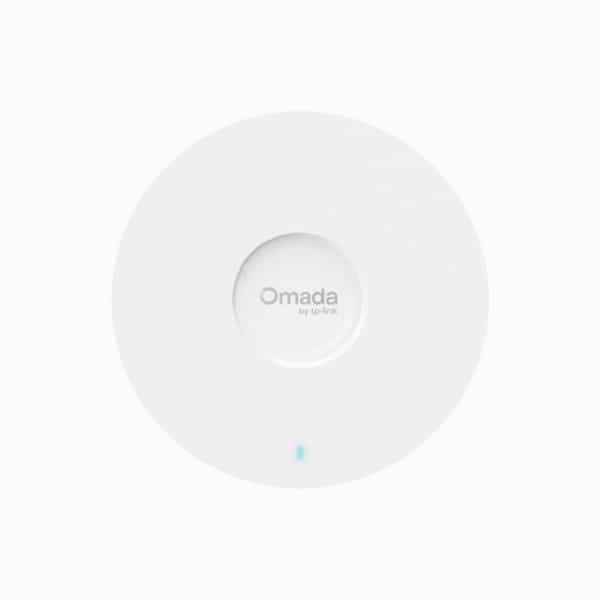

AX1800 Ceiling Mount WiFi 6 Access Point – TPLINK EAP610

Item Code: 101597
Brand: TPLINK
Model: EAP610
Item Condition: New
Color: White
Interfaces: 1× Gigabit Ethernet Port
Power Supply:
- V4: 802.3af PoE
  48 V Passive PoE

  12 V/1 A DC (Power Adapter included)
Max. Power Consumption:
- 10.9W (For PoE);
  9.9W (For DC)
Mounting:

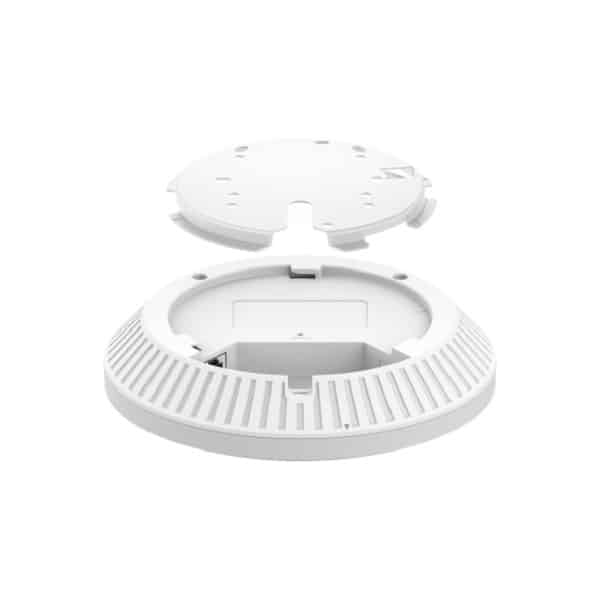

- Ceiling/Wall Mounting (Kits included)
  Junction Box Mounting
Dimensions (WxDxH): V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Coverage: 115㎡(1250 ft²)
Concurrent Clients: 250+
Frequency: 2.4 GHz and 5 GHz
Omada App: Yes
Packaging: Carton Box

... people are viewing this right now

KSh 23,000.00

Description

AX1800 Ceiling Mount WiFi 6 Access Point – TPLINK EAP610:

Key Features

- 4-Stream Dual-Band Wi-Fi 6: 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
- 1× Gigabit Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network.
- Flexible Deployment and Easy Setup: Supports 802.3af PoE, Passive PoE, and DC power (adapter included) for versatile installation with one-click setup via Omada SDN.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.
- More Connections, Wider Coverage: Supports 250+ concurrent clients and covers up to 1,250 ft² (115 ㎡) for reliable and extensive wireless connectivity.

Specifications

Brand:	TPLINK
Model:	EAP610
Condition:	New
Color:	White
Interfaces:	1× Gigabit Ethernet Port
Power Supply:	• V4: 802.3af PoE • 48 V Passive PoE • 12 V/1 A DC (Power Adapter included)
Max. Power Consumption:	10.9W (For PoE); 9.9W (For DC)
Antenna:	Internal Omni Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Mounting:	• Ceiling/Wall Mounting (Kits included) • Junction Box Mounting
Dimensions (WxDxH):	V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Wireless Standards:	IEEE 802.11ax/ac/n/g/b/a
Coverage:	115㎡(1250 ft²)
Concurrent Clients:	250+
Frequency:	2.4 GHz and 5 GHz
Signal Rate:	• 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions:	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Seamless Roaming(802.11k/v/r) • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security:	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:	• CE: 7-20 dBm(2.4 GHz, EIRP) 7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP) ; 7-27 dBm (5 GHz U-NII-2C, EIRP)• FCC: 4-24 dBm (2.4 GHz) 4-24 dBm (5 GHz)
Omada App:	Yes
Centralized Management:	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access:	Yes. Require the use of an Omada controller.
Email Alerts:	Yes
LED ON/OFF Control:	Yes
Management MAC Access Control:	Yes
SNMP:	v1, v2c, v3
System Logging Local/Remote Syslog:	Local/Remote Syslog
SSH:	Yes
Web-based Management:	HTTP/HTTPS
L3 Management:	Yes
Multi-site Management:	Yes
Management VLAN:	Yes
Packaging:	Carton box
Included in Package:	• EAP610 • Power Adapter • Ceiling/Wall/Junction Box Mounting Kits • Installation Guide
Country of Origin:	China
