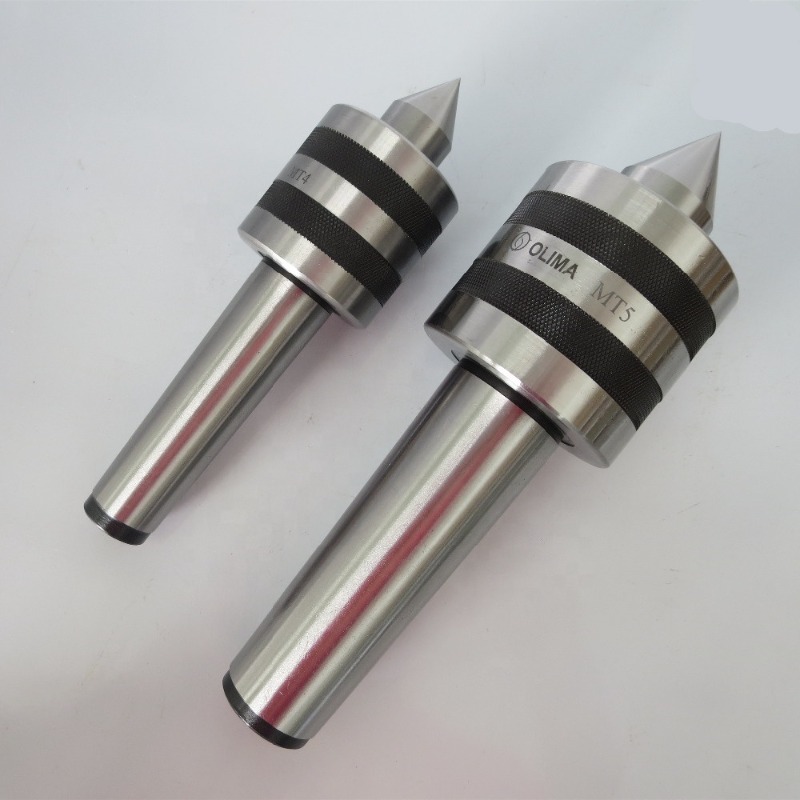

Live centers are inserted in the tailstock of lathes and serve as thrust bearing and support for longer workpieces. A hardened body and point provide the extra strength and wear resistance necessary for continuous use on manual or CNC lathes.
With bearings to support their free-turning point, they produce minimal friction between the center and workpiece. For increased tool life, the bearings are lubricated and sealed to protect against fluid and chips.
Specifications
Shank Type | Morse Taper |
Morse Taper Number | 3 |
Max Load | 660 Pounds |
Max Speed | 3,000 RPM |
Point Angle | 60° |
Material | Hardened Steel |
For Use With | Lathes |
For Holding | Workpieces |
RoHS | |
REACH | |
DFARS | |
Country of Origin | Peoples Republic of China |
