Sensors and Limit Switches

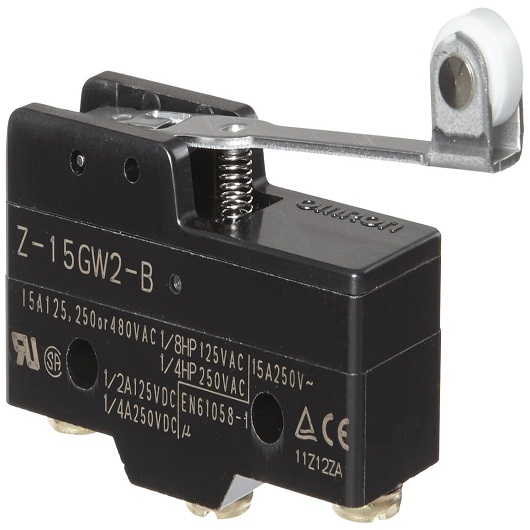

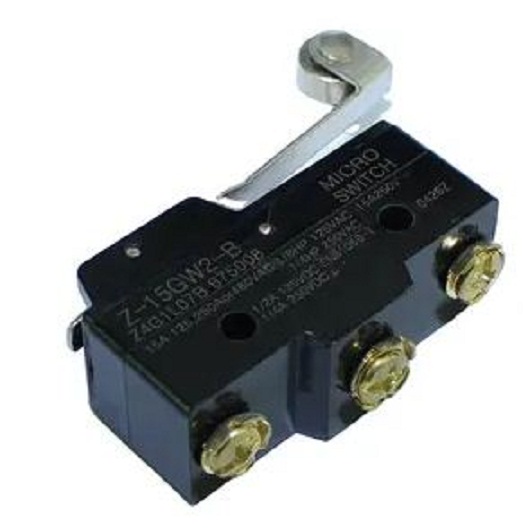

Omron Z-15GW2-B Roller Lever Limit Switch – 15A, 250V
Availability:
1 in stock
- Item Code: 100418
- Item Condition: New
- Brand: Omron
- Model: Z-15GW2-B
- Application: General Purpose
- Color: Black
- Switch Type: Limit
- Actuator Style: Hinged Roller Lever
- Switching Current: 15A
- Maximum Rated Voltage: 250VAC
- Wire Connection Type: Screw Terminals
- Switch Starting Position:
- 1 Off (Normally Open) or
- 1 On (Normally Closed)
KSh 1,200.00
1 in stock
CompareOmron Z-15GW2-B Roller Lever Limit Switch – 15A, 250V: These switches have a large switching capacity of 15 A with high repeat accuracy. Wire Connections are made with 3 terminal screws (M4 screws with toothed washers). Use M4 screws with plane washers and spring washers to mount the Switch.
Specifications
| Item Condition: | New |
| Brand: | Omron |
| Model: | Z-15GW2-B |
| Color: | Black |
| Switch Type: | Limit |
| Actuator Style: | Hinged Roller Lever |
| Switching Current: | 15A |
| Maximum Rated Voltage: | 250VAC |
| Switch Starting Position: | 1 Off (Normally Open) or 1 On (Normally Closed) |
| Switch Action: | Springs Back (Momentary) |
| Wire Connection Type: | Screw Terminals (Type B) |
| Number of Terminals: | 3 |
| Terminal Industry Designation | SPDT |
| Application: | General Purpose |
| Mounting Holes: | 2 x 4.2mm dia. (Use M4 Screws) |
| Distance between Mounting Hole Centers: | 25.4 mm |
| Country of Origin | Japan |
…
…
