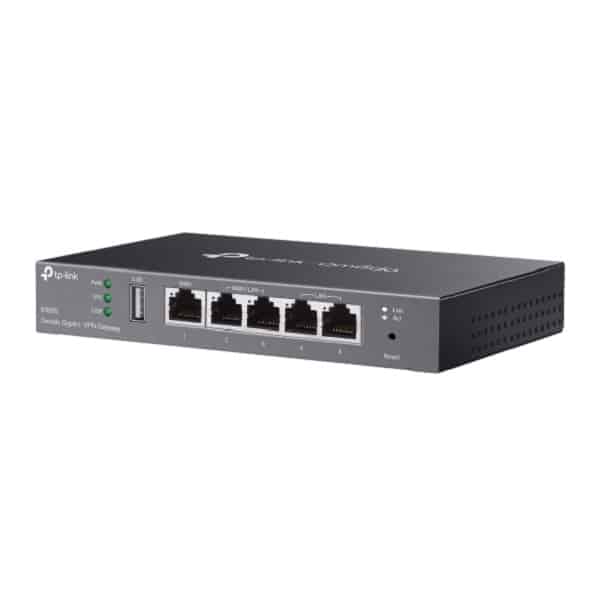

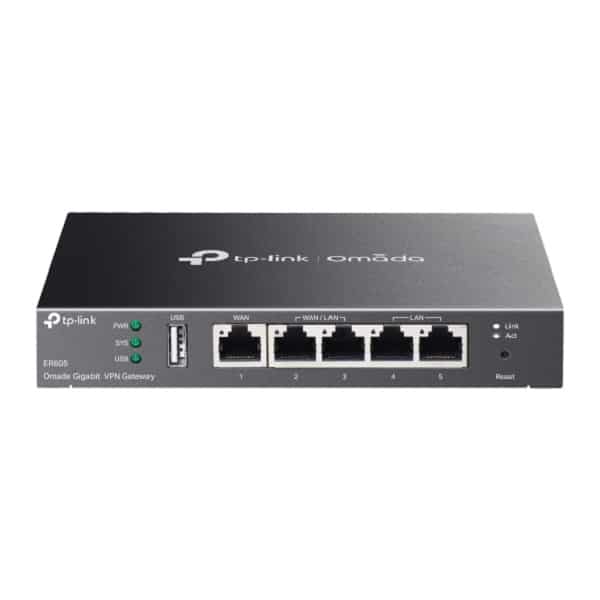

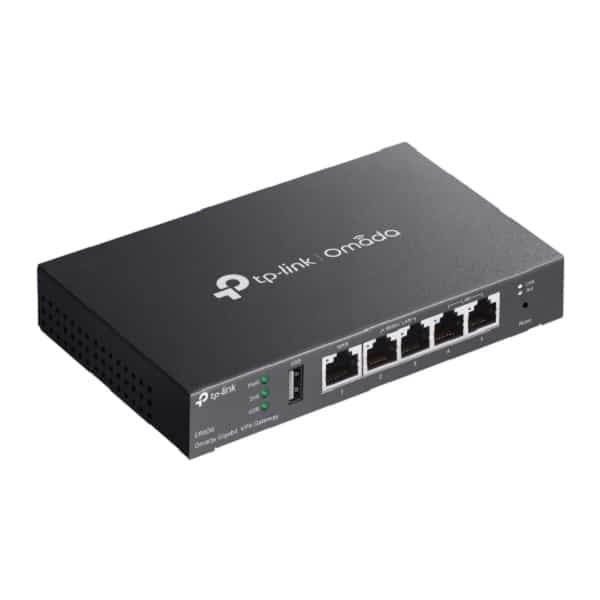

Omada Gigabit VPN Gateway – TPLINK ER605

Name: Omada Gigabit VPN Gateway - TPLINK ER605
SKU: 101652
Availability: InStock

... people are viewing this right now

KSh 9,600.00

Key Features

Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for convenience and easy management.
Five Gigabit Ports: High-speed wired connectivity.
Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.^‡
Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

Brand:	TPLINK
Model:	ER605
Condition:	New
Color:	Black
Packaging:	Carton box
Included in Package:	• ER605 • Power Adapter • RJ-45 Ethernet Cable • Quick Installation Guide
Country of Origin:	China

SECURITY
Access Control	Source/Destination IP Based Access Control/FQDN
Filtering	• WEB Group Filtering • URL Filtering • Web Security
ARP Inspection	• Sending GARP Packets • ARP Scanning • IP-MAC Binding • ARP Detection
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES
Standards and Protocols	• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
Interface	• 1 Gigabit WAN port • 2 Gigabit LAN/WAN ports • 2 Gigabit LAN ports • 1 USB2.0(supports USB LTE dongle^‡)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity	Fanless
Button	Reset Button
Power Supply	External 12V/1A DC Adapter
PoE Budget	–
Flash	128 MB NAND
DRAM	256 MB DDR
LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H )	6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Protection	4 kV surge protection
Enclosure	Steel
Mounting	Desktop/Wall-mount
Max. Power Consumption	7.94 W

PERFORMANCE
DPI Throughput	TCP: 905 Mbps; UDP: 788 Mbps
WireGuard VPN Throughput	• 123.4 Mbps
Concurrent Session	150,000
New Sessions /Second	2,600
NAT (Static IP)	• Upload: 945.77 Mbps • Download: 938.79 Mbps • Bi-Directional: 1808.29 Mbps
NAT(DHCP)	• Upload: 945.54 Mbps • Download: 945.66 Mbps • Bi-Directional: 1802.77 Mbps
NAT(PPPoE)	• Upload: 939.71Mbps • Download: 939.43 Mbps • Bi-Directional: 1788.54 Mbps
NAT (L2TP)	• Upload: 815.55 Mbps • Download: 835.59 Mbps • Bi-Directional: 903.13 Mbps
NAT (PPTP)	• Upload: 813.23 Mbps • Download: 850.91 Mbps • Bi-Directional: 894.41 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 259.78 Mbps • ESP-SHA256-AES256: 260.81 Mbps • ESP-SHA384-AES256: 37.65 Mbps • ESP-SHA512-AES256: 38.32 Mbps
OpenVPN	• 21.70 Mbps
L2TP VPN Throughput	• Unencrypted: 640.99 Mbps • Encrypted: 77.31 Mbps
PPTP VPN Throughput	• Unencrypted: 759.55 Mbps • Encrypted: 75.80 Mbps
SSL VPN Throughput	–
66 Byte Packet Forwarding Rate	Upload: 1,388,815pps Download: 1,388,806pps
1,518 Byte Packet forwarding rate	Upload: 81,067pps Download: 81,067pps

BASIC FUNCTIONS
WAN Connection Type	• Static • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN/LAN MAC Address^†
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60
IPv6	StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP^§ • OSPF^§
Bandwidth Control	IP-based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering^§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT
Session Limit	IP-based Session Limit

VPN
GRE	√ (Only in Standalone Mode)
SD-WAN	√ (Only in Controller Mode)
IPsec VPN	• 20 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10) ^** • 16 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10) ^** • 16 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (10)^§ • 16 OpenVPN Tunnels • “Certificate + Account” Mode • Full Mode
WireGuard VPN	• 20 Tunnels

AUTHENTICATION

Web Authentication

• No Authentication

• Simple Password^*

• Hotspot（Local User / Voucher^*/ SMS^*/ Radius^*）

• External Radius Sever

• External Portal Sever^*

• LDAP^§

Management Features
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)^§ • NTP Synchronize^§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, FCC, RoHS
