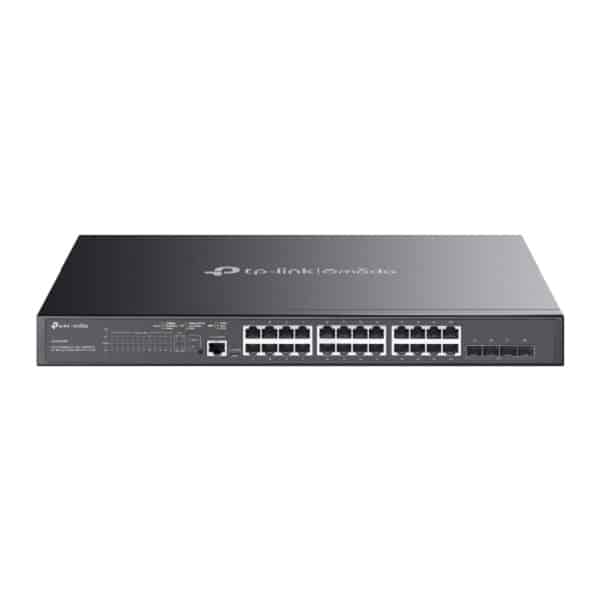

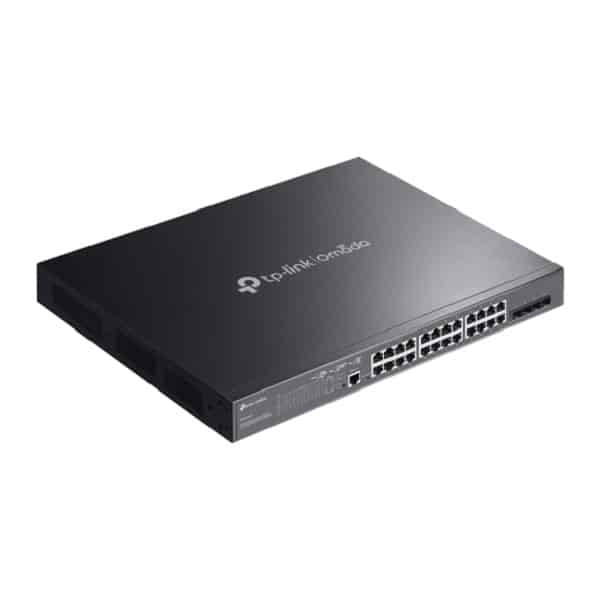

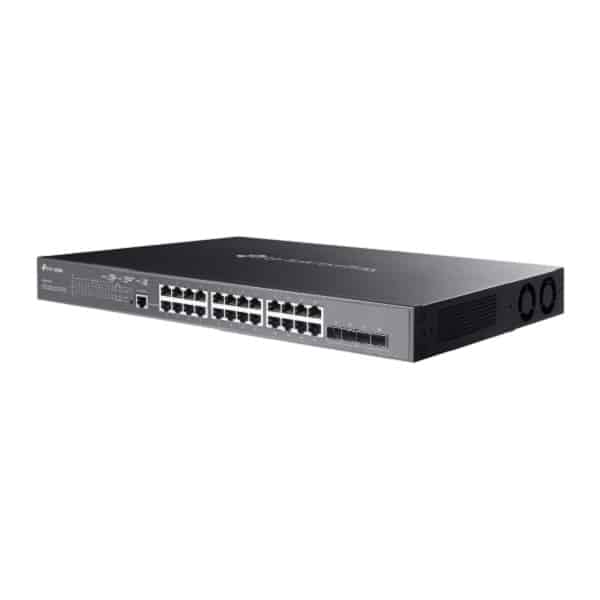

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ - TPLINK TL-SG3428XMP
Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ - TPLINK TL-SG3428XMP
Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ - TPLINK TL-SG3428XMP
,

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ – TPLINK TL-SG3428XMP

Add to wishlist
Compare
  • Item Code: 101571
  • Brand: TPLINK
  • Model: TL-SG3428XMP
  • Item Condition: New
  • Color: Black
  • Power Supply: 100-240 V AC~50/60 Hz
  • Max. Power Consumption: 486.2 W (110V/60Hz) ( with 384 W PD connected)
  • Interface: โ€ข 24ร— 10/100/1000 Mbps RJ45 PoE+ Ports
    โ€ข 4ร— 10G SFP+ Slots
    โ€ข 1ร— RJ45 Console Port
    โ€ข 1ร— Micro-USB Console Port
  • PoE Ports (RJ45):
    โ€ข Standard: 802.3at/af compliant
    โ€ข PoE+ Ports: 24 Ports (up to 30 W PoE Output per Port)
    โ€ข Power Budget: 384 W
  • Switching Capacity: 128 Gbps
  • Packet Forwarding Rate: 95.23 Mpps
  • Fan Quantity: 2
  • Physical Security Lock: Yes
  • Mounting: Rack Mountable
  • Transmission Method: Store and Forward
  • Packaging: Carton Box

KSh 97,000.00

Compare
Spread the love

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+ – TPLINK TL-SG3428XMP

Key Features:

  • 4ร— 10 Gbps SFP+ slots
  • 24ร— Gigabit 802.3af/at PoE+ ports
  • 384 W total PoE budget with up to 30 W PoE output per port
  • Centralized cloud management via the web or the Omada app
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design

Specifications

Brand: TPLINK
Model: TL-SG3428XMP
Condition: New
Color: Black
Interface: โ€ข 24ร— 10/100/1000 Mbps RJ45 PoE+ Ports
โ€ข 4ร— 10G SFP+ Slots
โ€ข 1ร— RJ45 Console Port
โ€ข 1ร— Micro-USB Console Port
Fan Quantity: 2
Physical Security Lock: Yes
Power Supply: 100-240 V AC~50/60 Hz
Max. Power Consumption: 486.2 W (110V/60Hz) ( with 384 W PD connected)
Max Heat Dissipation: 1658.78 BTU/hr (110 V/60 Hz) (with 384 W PD connected)
PoE Ports (RJ45): โ€ข Standard: 802.3at/af compliant
โ€ข PoE+ Ports: 24 Ports (up to 30 W PoE Output per Port)
โ€ข Power Budget: 384 W
Switching Capacity: 128 Gbps
Packet Forwarding Rate: 95.23 Mpps
MAC Address Table: 16K
Packet Buffer Memory: 12Mb
Jumbo Frame: 9 KB
Transmission Method: Store-and-Forward
Mounting: Rack Mountable
Dimensions (WxDxH): 17.3ร—13.0ร—1.7 in (440ร—330ร—44 mm)
Certification: FCC, CE, RoHs
Quality of Service: โ€ข 8 priority queues
โ€ข 802.1p CoS/DSCP priority
โ€ข Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
โ€ข Bandwidth Control: Port/Flow-based Rating Limiting
โ€ข Smoother Performance
โ€ข Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features: โ€ข 128 IP Interfaces: Support IPv4/IPv6 Interface
โ€ข Static Routing: 48 IPv4/IPv6 Static Routes
โ€ข Static ARP: 128 static entries
โ€ข 512 ARP Entries
โ€ข Proxy ARP
โ€ข Gratuitous ARP
โ€ข DHCP Server
โ€ข DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
โ€ข DHCP L2 Relay
โ€ข Link Aggregation
โ€ข Spanning Tree Protocol
โ€ข Loopback Detection
โ€ข 802.3x Flow Control
โ€ข Mirroring
L2 Multicast: โ€ข Supports 1000 (IPv4, IPv6) IGMP groups
โ€ข IGMP Snooping
โ€ข IGMP Authentication
โ€ข Multicast VLAN Registration (MVR)
โ€ข MLD Snooping
โ€ข Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features: โ€ข Automatic Device Discovery
โ€ข Batch Configuration
โ€ข Batch Firmware Upgrading
โ€ข Intelligent Network Monitoring
โ€ข Abnormal Event Warnings
โ€ข Unified Configuration
โ€ข Reboot Scheduleโ€

ISP Features:
โ€ข L2PT (Layer 2 Protocol Tunneling)
โ€ข Device Link Detect Protocol (DLDP)
โ€ข PPPoE ID Insertion
โ€ข ERPS
โ€ข 802.3ah Ethernet Link OAM
โ€ข DDM
โ€ข sFlow
VLAN: โ€ข VLAN Group: Max 4K VLAN Groups
โ€ข 802.1q Tagged VLAN
โ€ข MAC VLAN: 30 Entries
โ€ข Protocol VLAN: Protocol Template 16, Protocol VLAN 16
โ€ข Private VLAN
โ€ข GVRP
โ€ข VLAN VPN: VLAN Mapping, VLAN Replace
โ€ข Voice VLAN
Access Control List: โ€ข Time-based ACL
โ€ข MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
โ€ข IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
โ€ข Combined ACL
โ€ข Packet Content ACL
โ€ข IPv6 ACL
โ€ข Policy: Mirroring, Redirect, Rate Limit, QoS Remark
โ€ข ACL applies to Port/VLAN
Security: โ€ข IP-MAC-Port Binding
– 512 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard: 100 Entries
โ€ข IPv6-MAC-Port Binding
– 512 Entries
– DHCPv6 Snooping
– ND Detection
– ND Snooping
– IPv6 Source Guard: 100 Entries
โ€ข DoS Defend
โ€ข DHCP Filter
โ€ข Static/Dynamic Port Security: Up to 64 MAC addresses per port
โ€ข Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
โ€ข 802.1X
– Port-based authentication
– Mac-base authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Radius authentication and accountability support
โ€ข AAA (including TACACS+)
โ€ข Port Isolation
โ€ข Secure web management through HTTPS with SSLv3/TLS 1.2
โ€ข Secure Command Line Interface (CLI) management with SSHv1/SSHv2
โ€ข IP/Port/MAC-based access control
IPv6: โ€ข IPv6 Dual IPv4/IPv6
โ€ข Multicast Listener Discovery (MLD) Snooping
โ€ข IPv6 ACL
โ€ข IPv6 Interface
โ€ข Static IPv6 Routing
โ€ข IPv6 neighbor discovery (ND)
โ€ข Path maximum transmission unit (MTU) discovery
โ€ข Internet Control Message Protocol (ICMP) version 6
โ€ข TCPv6/UDPv6
โ€ข IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs: โ€ข MIB II (RFC1213)
โ€ข Interface MIB (RFC2233)
โ€ข Ethernet Interface MIB (RFC1643)
โ€ข Bridge MIB (RFC1493)
โ€ข P/Q-Bridge MIB (RFC2674)
โ€ข RMON MIB (RFC2819)
โ€ข RMON2 MIB (RFC2021)
โ€ข Radius Accounting Client MIB (RFC2620)
โ€ข Radius Authentication Client MIB (RFC2618)
โ€ข Remote Ping, Traceroute MIB (RFC2925)
โ€ข Support TP-Link private MIB
Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management: โ€ข Omada Cloud-Based Controller
โ€ข Omada Hardware Controller
โ€ข Omada Software Controller
Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features: โ€ข Web-based GUI
โ€ข Command Line Interface (CLI) through console port, telnet
โ€ข SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
โ€ข SDM Template
โ€ข DHCP/BOOTP Client
โ€ข 802.1ab LLDP/LLDP-MED
โ€ข DHCP AutoInstall
โ€ข Dual Image, Dual Configuration
โ€ข CPU Monitoring
โ€ข Cable Diagnostics
โ€ข EEE
โ€ข Password Recovery
โ€ข SNTP
โ€ข System Log
System Requirements: Microsoftยฎ Windowsยฎ 98SE, NT, 2000, XP, Vistaโ„ข or Windows 7/8/10/11, MACยฎ OS, NetWareยฎ, UNIXยฎ or Linux.
Environment: โ€ข Operating Temperature: 0โ€“45 โ„ƒ (32โ€“113 โ„‰);
โ€ข Storage Temperature: -40โ€“70 โ„ƒ (-40โ€“158 โ„‰)
โ€ข Operating Humidity: 10โ€“90% RH non-condensing
โ€ข Storage Humidity: 5โ€“90% RH non-condensing
Packaging: Carton box
Included in Package: โ€ข SG3428XMP Switch
โ€ข Power Cord
โ€ข Quick Installation Guide
โ€ข Rackmount Kit
โ€ข Rubber Feet
Country of Origin: China

More info here…

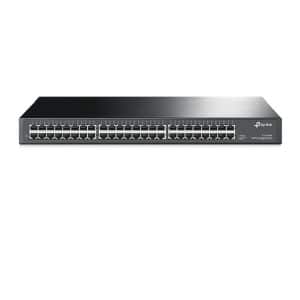

Related Names: 48-Port Gigabit Rackmount Switch – TPLINK TL-SG1048
