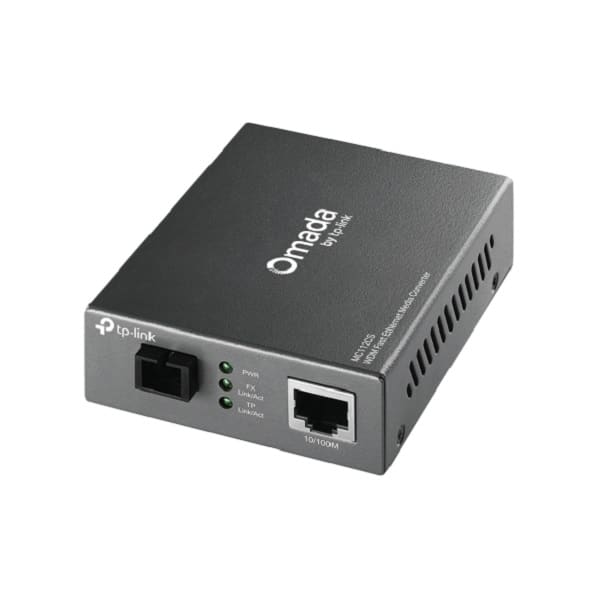

Omada 10/100Mbps Single-Mode Media Converter – TPLINK MC110CS
- Item Code: 101599
- Brand: TPLINK
- Model: MC110CS
- Item Condition: New
- Color: Black
- Wave Length: 1310nm
- Power Supply: External power Adapter
- Max. Power Consumption: 2.4W
- LED: PWR, Link/Act
- Interface:
• 2× 1000M SC/UPC ports
• 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
- Basic Function:
- 2× 100M SC/UPC ports
1× 10/100M RJ45 port (Auto MDI/MDIX)
- 2× 100M SC/UPC ports
- Packaging: Carton Box
KSh 8,000.00
Omada 10/100Mbps Single-Mode Media Converter – TPLINK MC110CS: The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Key Features
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 20km
Specifications
| Brand: | TPLINK Omada |
| Model: | MC110CS |
| Condition: | New |
| Color: | Black |
| Wave Length: | 1310nm |
| Basic Function: | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Full Duplex Flow Control (IEEE 802.3x) • Half Duplex Flow Control (Backpressure) • Extends fiber distance up to 20km |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power Supply: | External power Adapter |
| Max. Power Consumption: | 2.4W |
| LED: | PWR, Link/Act |
| Interface: | • 2× 100M SC/UPC ports
• 1× 10/100M RJ45 port (Auto MDI/MDIX) |
| Network Media 10BASE-T: | UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T: | UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX: | Single-mode Fiber |
| Dimensions (WxDxH): | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Certification: | FCC, CE, RoHS |
| Environment: | • Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| Packaging: | Carton box |
| Included in Package: | • MC110CS
• Power Adapter • Installation Guide |
| Country of Origin: | China |
