Bearings, Thrust Bearings

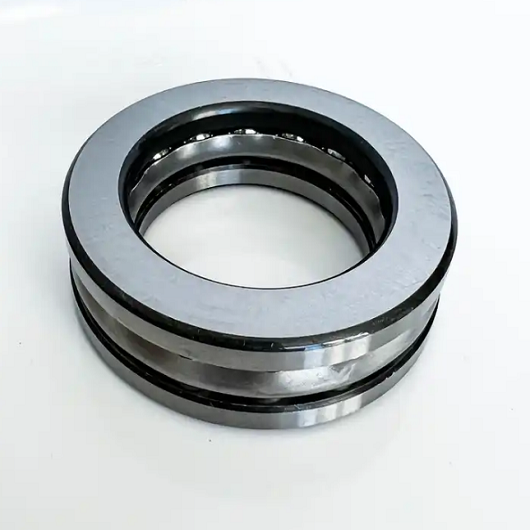

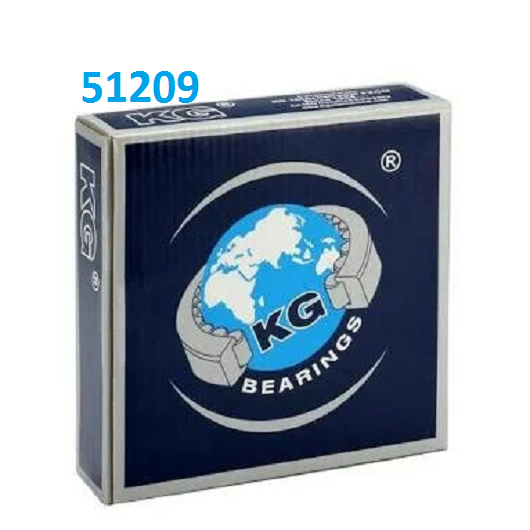

KG 51209 Thrust Ball Bearing for 45 mm Shaft Diameter, 73 mm OD
Availability:
38 in stock
- Item Code: 100391
- Item Condition: New
- Brand: KG
- Model: 51209
- Bearing Type: Ball
- For Load Direction: Thrust
- Seal Type: Open
- For Shaft Type: Round
- System of Measurement: Metric
- For Shaft Diameter: 45mm
- OD (Outer Diameter): 73mm
- Thickness: 20mm
KSh 3,200.00
38 in stock

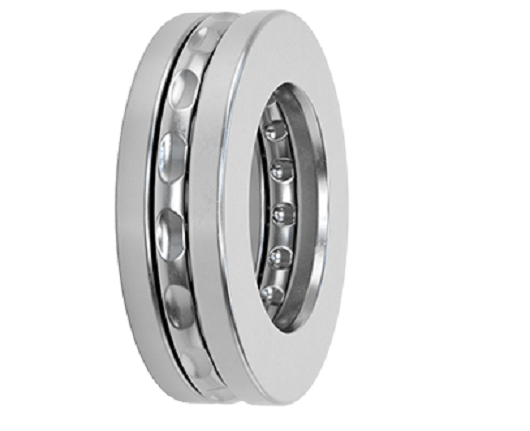

CompareKG 51209 Thrust Ball Bearing for 45 mm Shaft Diameter: This bearing is composed of bearing balls supported in a ring, and can be used in low thrust applications where there is little axial load. Thrust ball bearings are designed to accommodate axial/ thrust loads in one direction or double direction. Thrust ball bearings consist of two hardened and ground thrust plates with matching ball grooves on one side and a 1-piece brass cage that contains the precision balls. In some low-speed applications, a full complement of balls is used without the cage to increase thrust capacity. Thrust Ball Bearings are not suitable for high-speed applications. At high speeds, sliding movement between balls and raceways can occur, which may result in smearing.
Specifications
| Item Condition: | New |
| Brand: | KG |
| Model: | 51209 |
| Bearing Type: | Ball |
| For Load Direction: | Thrust |
| Seal Type: | Open |
| For Shaft Type: | Round |
| System of Measurement: | Metric |
| For Shaft Diameter (ID): | 45mm |
| OD (Outer Diameter): | 73mm |
| Thickness: | 20mm |
| Ball Material: | Steel |
| Cage Material: | Steel |
| Washer Material | Steel |
| Lubrication Required: | Yes |
| Temperature Range: | Two Washers |
| Thrust Load Capacity: | |
| Includes: | Two Washers |
| Included in Package: | 1x 51209 Thrust Bearing |
| Country of Origin | Peoples Republic of China |
…
…
…
