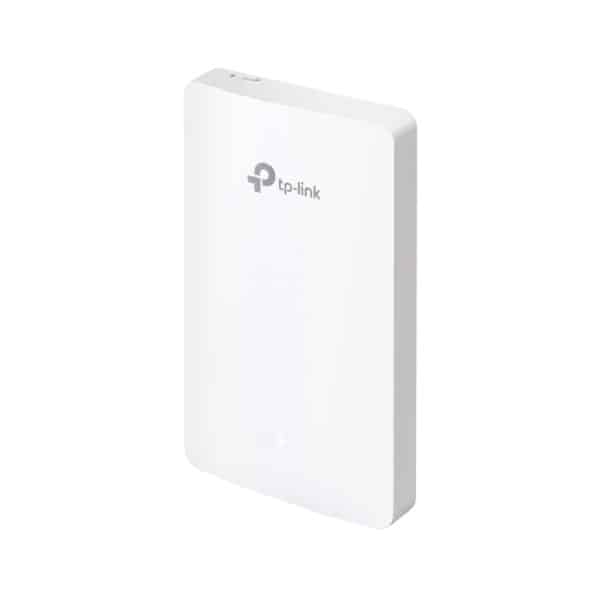

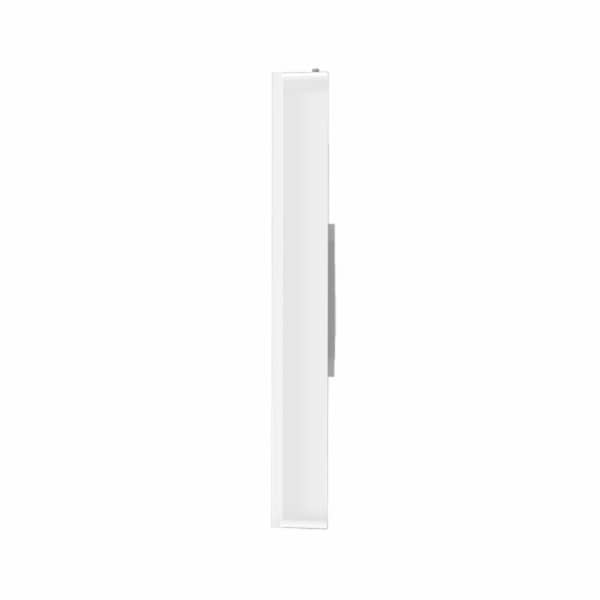

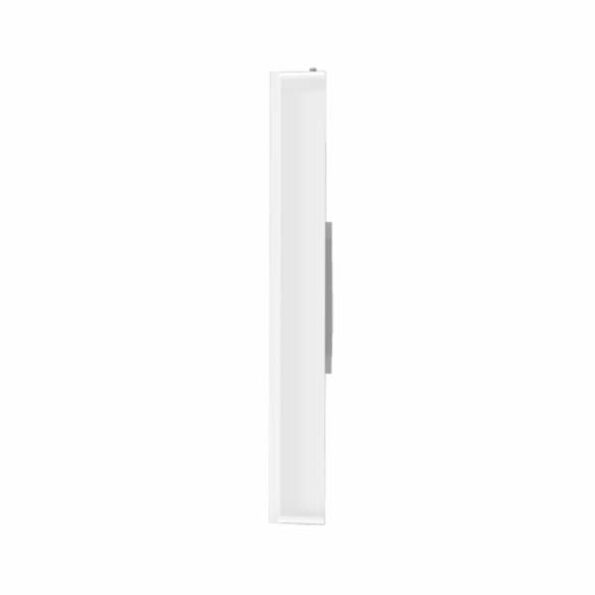

AX1800 Wall Plate WiFi 6 Access Point – TPLINK EAP615-Wall

Item Code: 101580
Brand: TPLINK Omada
Model: EAP615-Wall
Item Condition: New
Color: White
Interface:
- Uplink: 1× 10/100/1000 Mbps Ethernet Port
  Downlink: 3× 10/100/1000 Mbps Ethernet Ports
Button: RESET
Power Supply: 802.3af/at PoE
Max. Power Consumption:
- EU: 10W (802.3at PoE, PoE Out off)
  US: 11.5W (802.3at PoE, PoE Out off)
Antenna: 2 Dual-Band Antennas (2.4 GHz: 2× 3 dBi, 5 GHz: 2× 4 dBi)
Coverage: 50㎡(600 ft²)
Concurrent Clients: 120+
Mounting: Wall Plate Mounting
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz, and 5GHz
Omada App: Yes
Centralized Management: • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access: Yes. Require the use of an Omada controller
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
Web-based Management: HTTP/HTTPS
Packaging: Carton Box

... people are viewing this right now

KSh 13,000.00

Description

AX1800 Wall Plate WiFi 6 Access Point – TPLINK EAP615-Wall: Meet the demands for smoother online activities and more device connections

Key Features:

Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

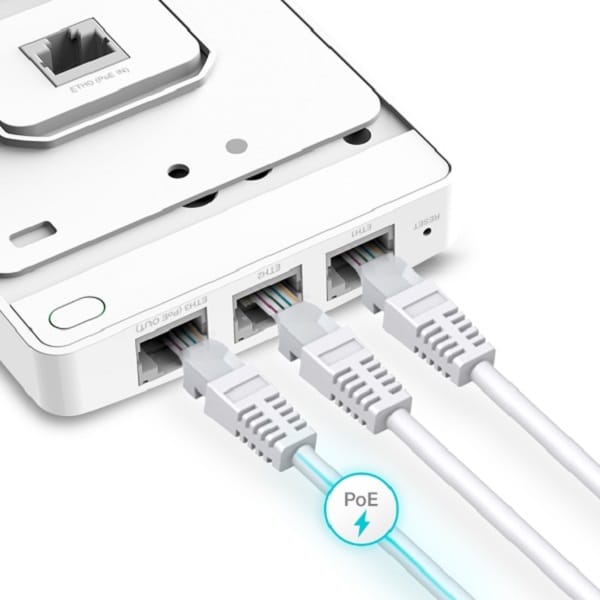

Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
Centralized Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.^†

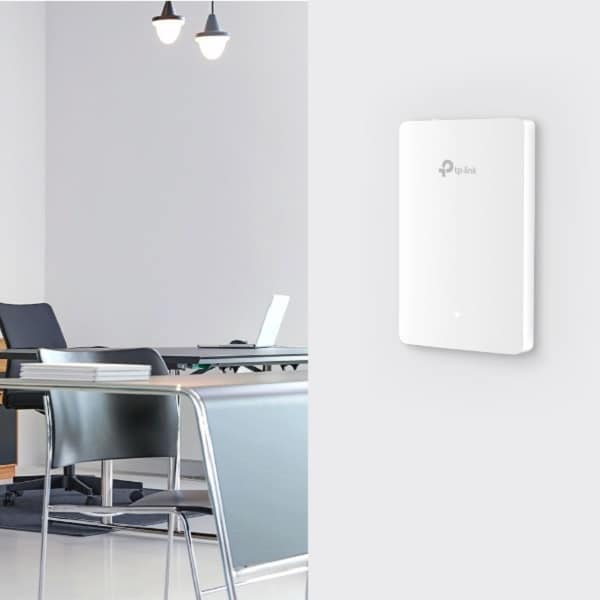

Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.

Specifications

Brand:	TPLINK
Model:	EAP615-Wall
Condition:	New
Color:	White
Interface:	• Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Physical Security Lock:	Yes
Button:	RESET
Power Supply:	802.3af/at PoE
Max. Power Consumption:	• EU: 10W (802.3at PoE, PoE Out off) • US: 11.5W (802.3at PoE, PoE Out off)
Dimensions (WxDxH):	143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Antenna:	2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi
Mounting:	Wall Plate Mounting
Coverage:	50㎡(600 ft²)
Concurrent Clients:	120+
Wireless Standards:	IEEE 802.11ax/ac/n/g/b/a
Frequency:	2.4GHz, and 5GHz
Signal Rate:	• 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps
Wireless Functions:	• 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Omada Mesh^† • Seamless Roaming(802.11k/v/r)^† • Beamforming • MU-MIMO • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Wireless Security:	• Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power:	• CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, Band1, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz, Band1) < 21 dBm（5Ghz, Band4）
Omada App:	Yes
Centralized Management:	• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access:	Yes. Require the use of an Omada controller
Email Alerts:	Yes
LED ON/OFF Control:	Yes
Management MAC Access Control:	Yes
SNMP:	v1, v2c, v3
System Logging Local/Remote Syslog:	Local/Remote Syslog
SSH:	Yes
Web-based Management:	HTTP/HTTPS
L3 Management:	Yes
Multi-site Management:	Yes
Management VLAN:	Yes
Zero-Touch Provisioning:	Yes. Requiring the use of Omada Cloud-Based Controller.
Certification:	CE, FCC, RoHS
System Requirements:	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
Environment:	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
Packaging:	Carton box
Included in Package:	• EAP615-Wall • Installation Guide • Mounting Kit
Country of Origin:	China
