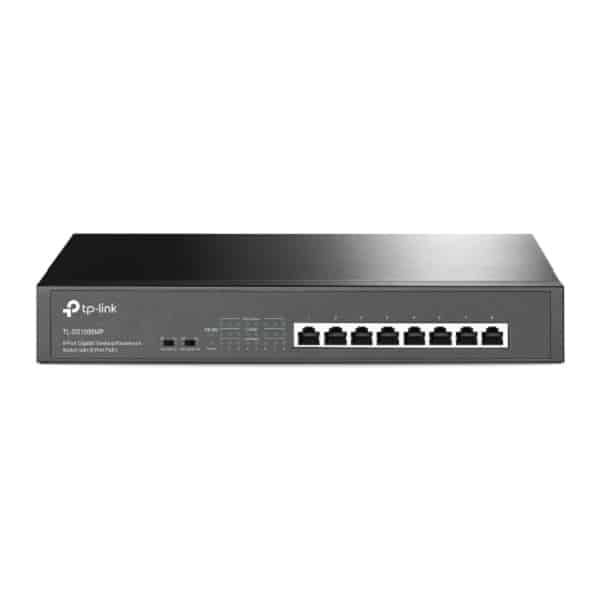

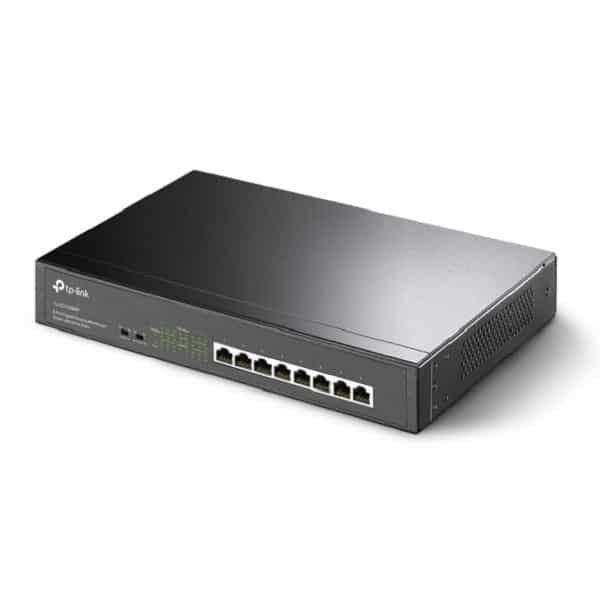

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+, Plug & Play – TPLINK TL-SG1008MP: Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 153 W PoE power budget for the 8ร PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Key Features
- 8ร 10/100/1000Mbps RJ45 ports.
- Equipped with 8ร PoE+ supported ports to transfer data and power over a single cable.
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks.
- Innovative energy-efficient technology reduces power consumption.
- Supports PoE+ standard with total power budget of 153W and up to 30W per port.
- Up to 250m data and power transmitting range under Extend Mode.
- PoE Auto Recovery guarantees stable operation of PoE devices by automaticallyย rebooting the dropped or unresponsive PD devices.
- Plug and play design, no configuration required.
- Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses
Specifications
Brand: | TPLINK Omada |
Model: | TL-SG1008MP |
Condition: | New |
Color: | Black |
PoE Ports (RJ45): | Standard: 802.3af/at compliant PoE+ Ports: 8 Ports Power Supply: 153W |
Interface: | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity: | Fanless |
Physical Security Lock: | No |

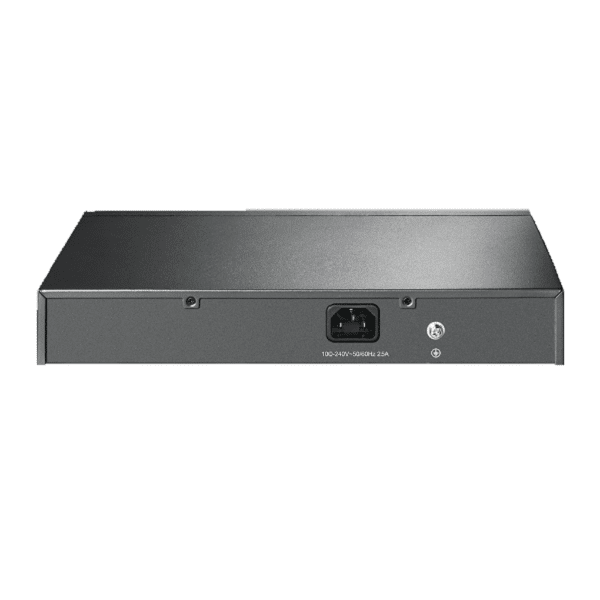

Power Supply: | 100-240VAC, 50/60Hz |
Max. Power Consumption: | โข 8.77 W(220V/50Hz. no PD connected) โข 172.49 W(110V/60Hz. with 153W PD connected) |
Max Heat Dissipation: | โข 29.91 BTU/h(no PD connected) โข 588.19 BTU/h(with 153W PD connected) |
Jumbo Frame: | 16 KB |
Switching Capacity: | 16 Gbps |
MAC Address Table: | 4K |
Buffer Size: | 1.5Mbits |
Transmission Method: | Store and Forward |
Dimensions (WxDxH): | 11.6*7.1*1.7 in. (294*180*44 mm) |
Mounting: | Desktop/Rack Mountable |
Advanced Features: | โข Compatible With IEEE 802.3af/at Compliant PDs โข Priority Function โข Mac Address Auto-Learning And Auto-Aging โข IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode โข Extend Mode Button (Ports 1โ2, Up to 250 m PoE power supply and data transmission) โข PoE Auto Recovery (Ports 1-8) |
Certification: | FCC, CE, RoHS |
Environment: | Operating Temperature: 0โ~45โ (32โ~113โ) Storage Temperature: -40โ~70โ (-40โ~158โ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Packaging: | Carton box |
Included in Package: | TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
Country of Origin: | China |
