Caster Wheels, Casters, Sliding Gate Accessories, Sliding Gate Rollers, U&V-Groove Track Rollers
70mm Sliding Gate Caster with V-groove Metal Wheel
- Item Code: 100439
- Mount Type: Plate
- Caster Type: Fixed
- Wheel Diameter: 70 mm
- Wheel Width: 20 mm
- Wheel Color: Gold
- Wheel Type: V-Groove
- Groove Angle: 92°
- Mount Height: 80 mm
- Mounting Plate Length: 100 mm
- Mounting Plate Width: 35 mm
- Mounting Holes: 2
- Mounting Fasteners Size: M8
- Mounting Fasteners Included: No
- Capacity per Caster: kg
- Wheel/Tread Material: Steel
KSh 1,600.00
Compare70mm Sliding Gate Caster with V-groove Metal Wheel: This V-Shaped Caster has a wheel with a 92° V-groove and a flat tread to move your equipment on angle-iron track as well as the floor. Their steel wheels are suitable for corrosion resistant environment.
Ball bearings in the wheel provide easy rolling and are shielded for protection against dust and debris.

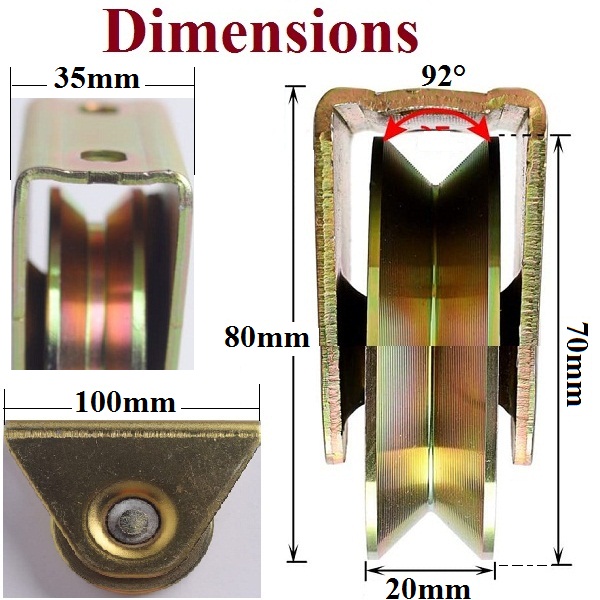

Specifications
| Mount Type: | Plate |
| Caster Type: | Rigid (also called “Fixed”) |
| No. of Wheels: | 1 |

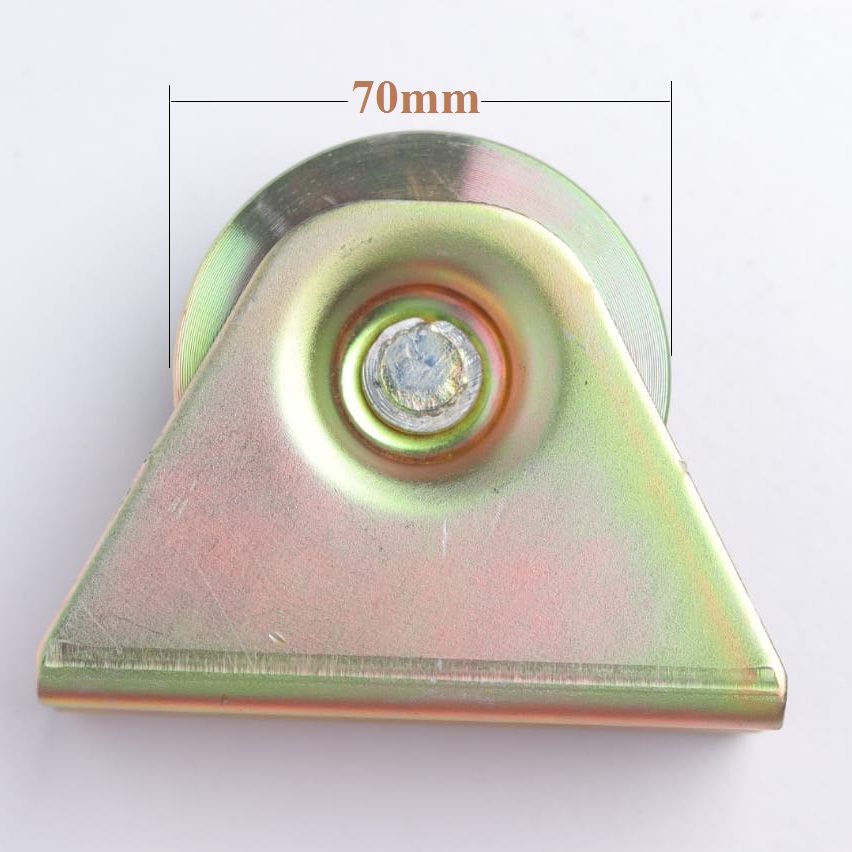

| Wheel Diameter: | 70 mm |
| Wheel Width: | 20 mm |
| Wheel Color: | Zinc-Plated |
| Wheel Type: | Solid |
| Wheel/Tread Material: | Steel |
| Tread Shape: | V-Groove |
| Groove Angle: | 92° |
| Non-marking Wheels: | No |
| Wheel Bearing Type: | Ball |
| Wheel Bearing Seal Type: | Sealed |
| Wheel Bearing Material: | Steel |
| Max Load Capacity per Caster: | |
| Mount Height: | 80 mm |
| Mounting Plate Length: | 100 mm |
| Mounting Plate Width: | 35 mm |
| Mounting Holes: | 2 |

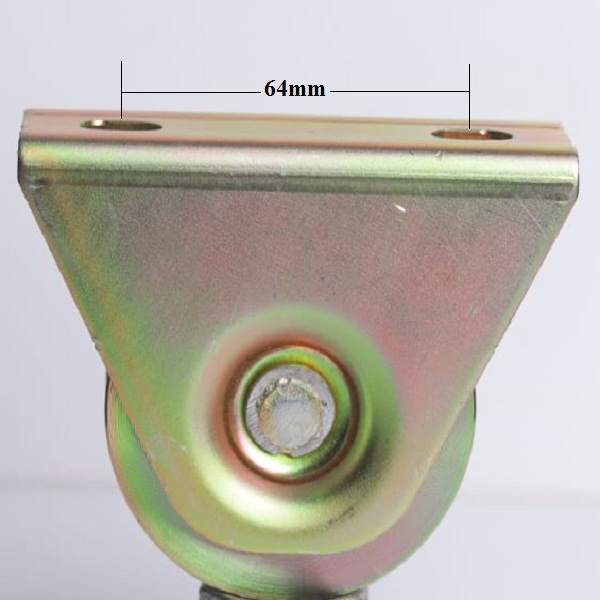

| Distance Between Mounting Hole Centers: | 64mm |
| Mounting Screws Size: | M8 |
| Mounting Fasteners Included: | No |
| Frame Fabrication: | Stamped |
| Frame Material: | Galvanised Steel |
| For Surface Type: | Steel, Track |
| Features: | V-shaped metal wheel Rigid Plate Stamped-steel frame No Locking-Brake Two Unsealed Ball bearings |
| Suitable for: | Corrosion Resistant Environment |
| Country of Origin | Peoples Republic of China |
| Related Names: | V-Type Roller, U-Type Roller, V-Type Roller supplier, V-Type Roller supplier kenya, V-Type Roller kenya, V-Type Roller china, Y-Type Roller, Moving Caster Wheels, Casters, V-Shaped Casters, V-Type Steel Pulley Block Mute Bearings Sliding Roller Track Wheel, Groove Rigid Caster Wheel for Sliding Doors, V-Groove Track Rollers, V-Groove Wheel Track Caster, Sliding Gate Fence Door Bottom Support Caster Wheel Roller, Block Pulley-Double Bearings Two Wheels, V-Groove, U-Groove, Y-Groove, V-shaped, U-shaped, Y-shaped |
| Ranking Keywords: | V Groove Caster, Heavy Duty Rigid Caster with Bracket for V Track Rail, Rolling Driveway Gate, Gate Roller, Sliding Gate Wheels |
| Related Search: | Sliding Gate Roller, Slide Gate Roller, Slide Gate Wheel |
Based on 0 reviews
Be the first to review “70mm Sliding Gate Caster with V-groove Metal Wheel”
