Caster Wheels, Sliding Gate Accessories, Track Roller Carriages and Guide Rails

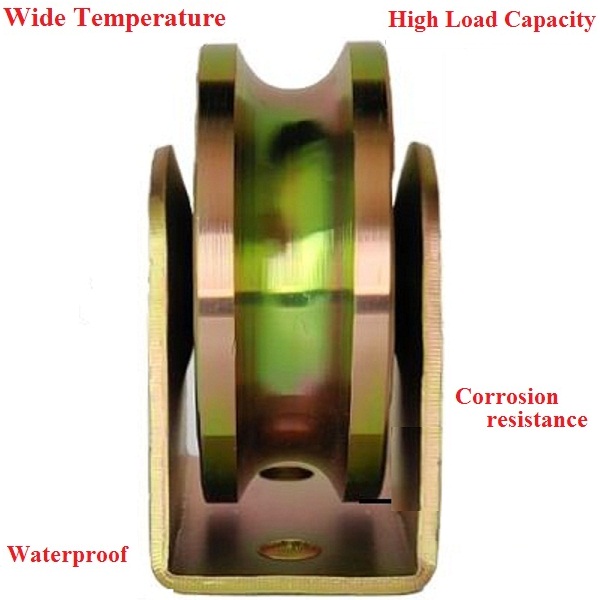

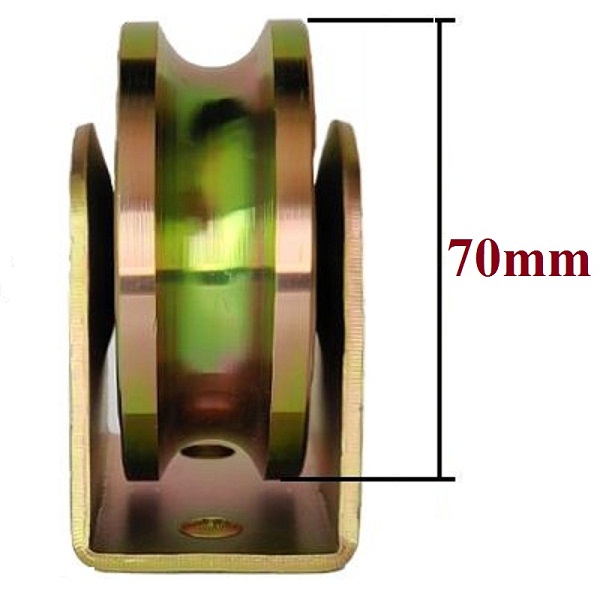

70mm Sliding Gate Caster with U-groove Metal Wheel
- Item Code: 100445
- Wheel Diameter: 70 mm
- Wheel Width: 20Â mm
- Wheel Color: Gold
- Wheel Type: U-Groove
- Capacity per Roller: kg
- Wheel/Tread Material: Steel
KSh 1,600.00
Compare70mm Sliding Gate Caster with U-groove Metal Wheel
Specifications
| Mount Type: | Plate |
| Caster Type: | Rigid (also called “Fixed”) |
| No. of Wheels: | 1 |
| Wheel Diameter: | 70 mm |
| Wheel Width: | 20 mm |
| Wheel Color: | Zinc-Plated |
| Wheel Type: | Solid |
| Wheel/Tread Material: | Steel |
| Tread Shape: | V-Groove |
| Groove Angle: | |
| Non-marking Wheels: | No |
| Wheel Bearing Type: | Ball |
| Wheel Bearing Seal Type: | Sealed |
| Wheel Bearing Material: | Steel |
| Max Load Capacity per Caster: | |
| Mount Height: | 80 mm |
| Mounting Plate Length: | 100 mm |
| Mounting Plate Width: | 35 mm |
| Mounting Holes: | 2 |
| Distance Between Mounting Hole Centers: | 64mm |
| Mounting Screws Size: | M8 |
| Mounting Fasteners Included: | No |
| Frame Fabrication: | Stamped |
| Frame Material: | Galvanised Steel |
| For Surface Type: | Steel, Track |
| Features: | V-shaped metal wheel Rigid Plate Stamped-steel frame No Locking-Brake Two Unsealed Ball bearings |
| Suitable for: | Corrosion Resistant Environment |
| Country of Origin | Peoples Republic of China |
| Related Names: | V-Type Roller, U-Type Roller, V-Type Roller supplier, V-Type Roller supplier kenya, V-Type Roller kenya, V-Type Roller china, Y-Type Roller, Moving Caster Wheels, Casters, V-Shaped Casters, V-Type Steel Pulley Block Mute Bearings Sliding Roller Track Wheel, Groove Rigid Caster Wheel for Sliding Doors, V-Groove Track Rollers, V-Groove Wheel Track Caster, Sliding Gate Fence Door Bottom Support Caster Wheel Roller, Block Pulley-Double Bearings Two Wheels, V-Groove, U-Groove, Y-Groove, V-shaped, U-shaped, Y-shaped |
| Ranking Keywords: | V Groove Caster, Heavy Duty Rigid Caster with Bracket for V Track Rail, Rolling Driveway Gate, Gate Roller, Sliding Gate Wheels |
| Related Search: | Sliding Gate Roller, Slide Gate Roller, Slide Gate Wheel |
