Caster Wheels, Sliding Gate Accessories, Track Roller Carriages and Guide Rails

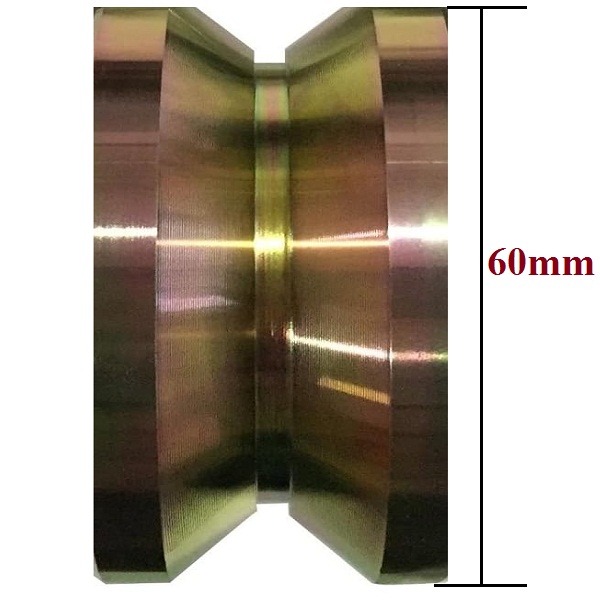

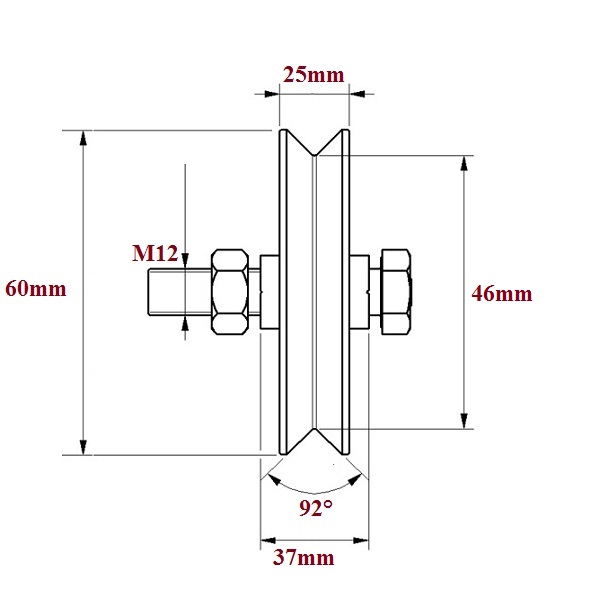

60mm Sliding Gate V-Groove Metal Roller Wheel with Axle
- Item Code: 100444
- Roller Style: Axle Mount
- Wheel Color: Zinc-Plated
- Wheel Type: Solid
- Wheel/Tread Material: Galvanized Steel
- Bolt / Nut Size: M12 x 60mm Long
- Wheel Diameter: 60 mm
- Wheel Width: 25 mm
- Overall Width: 37 mm
- Wheel Type: V-Groove
- Groove Angle: 92°
- Capacity per Roller: 95 kg
KSh 1,100.00
Compare60mm Sliding Gate V-Groove Metal Roller Wheel with Axle: This V-Shaped roller has a wheel with a 92° V-groove and a flat tread to move your equipment on angle-iron track as well as the floor. Their steel wheels are suitable for corrosion resistant environment.
Ball bearings in the wheel provide easy rolling and are shielded for protection against dust and debris.
Specifications
| Item Condition: | New |
| Mount Type: | None |
| Roller Style: | Axle Mount |
| Wheel Diameter: | 60 mm |
| Wheel Width: | 25 mm |
| Overall Width: | 37 mm |
| Wheel Color: | Zinc-Plated |
| Wheel Type: | Solid |
| Wheel/Tread Material: | Galvanized Steel |
| Tread Shape: | V-Groove |
| Groove Angle: | 92° |
| Non-marking Wheels: | No |
| Wheel Bearing Type: | Ball |
| Wheel Bearing Seal Type: | Sealed |
| Wheel Bearing Material: | Steel |
| Max Load Capacity per Caster: | 95 kg |
| Axle Type: | Partial Thread Bolt & Nut |
| Axle included in Package: | Yes |
| Bolt / Nut Size: | M12 x 60mm Long |
| Frame Material: | Steel |
| For use with: | Folded angle tracks |
| Features: | V-shaped metal wheel Two Ball bearings |
| Suitable for: | Corrosion Resistant Environment |
| Country of Origin | Peoples Republic of China |
| Related Names: | V-Type Roller, U-Type Roller, V-Type Roller supplier, V-Type Roller supplier kenya, V-Type Roller kenya, V-Type Roller china, Y-Type Roller, Moving Caster Wheels, Casters, V-Shaped Casters, V-Type Steel Pulley Block Mute Bearings Sliding Roller Track Wheel, Groove Rigid Caster Wheel for Sliding Doors, V-Groove Track Rollers, V-Groove Wheel Track Caster, Sliding Gate Fence Door Bottom Support Caster Wheel Roller, Block Pulley-Double Bearings Two Wheels, V-Groove, U-Groove, Y-Groove, V-shaped, U-shaped, Y-shaped |
| Ranking Keywords: | V Groove Caster, Heavy Duty Rigid Caster with Bracket for V Track Rail, Rolling Driveway Gate, Gate Roller, Sliding Gate Wheels |
| Related Search: | Sliding Gate Roller, Slide Gate Roller, Slide Gate Wheel |
