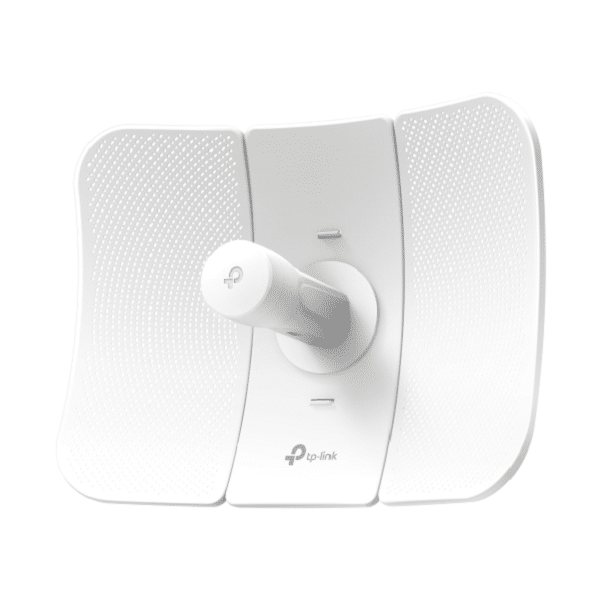

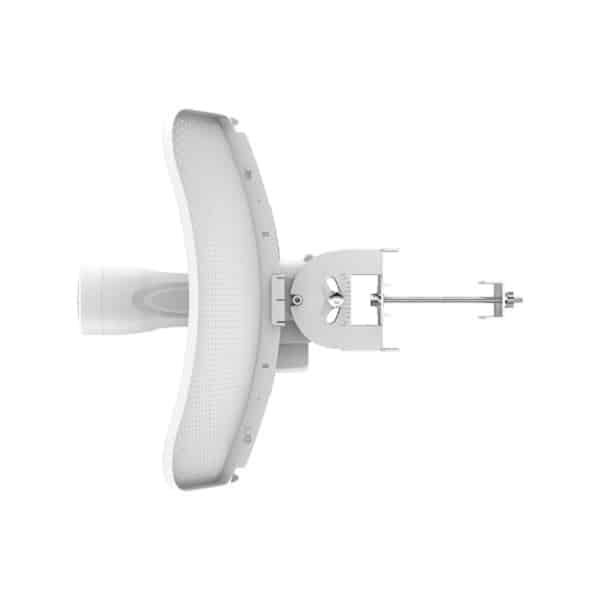

5GHz 300Mbps 23dBi Outdoor CPE – TPLINK CPE610
Brand: TP-LINK
- Item Code: 101614
- Brand: TPLINK
- Model: CPE610
- Item Condition: New
- Color: White
- Processor: Qualcomm 560MHz CPU, MIPS 74Kc
- Memory: 64MB DDR2 RAM,8MB Flash
- Interface: 1 10/100Mbps Shielded Ethernet Port (LAN/POE), 1 Reset Button
- Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
- Voltage range: 16-27VDC
- Max. Power Consumption: 7.41 W
- Antenna Gain: 23dBi
- Antenna Beamwidth: 9°(Azimuth), 7°(Elevation)
- Protection: 15KV ESD Protection, 6KV Lightning Protection
- Wireless Standards: IEEE 802.11a/n
- Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
- Frequency: 5.15~5.85GHz
- Packaging: Carton Box
... people are viewing this right now
KSh 9,100.00
5GHz 300Mbps 23dBi Outdoor CPE – TPLINK CPE610:
Key Features
- Up to 300Mbps on 5GHz wireless data rates
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance wireless transmission up to 30km
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
Specifications
| Brand: | TPLINK |
| Model: | CPE610 |
| Condition: | New |
| Color: | White |
| Packaging: | Carton box |
| Included in Package: | Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| Country of Origin: | China |
| Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
|---|---|
| Memory | 64MB DDR2 RAM,8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button |
| Power Supply | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC |
| Max. Power Consumption | 7.41 W
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
| Dimensions ( W x D x H ) | 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) |
| Antenna Gain | 23dBi |
| Antenna Beamwidth | 9°(Azimuth), 7°(Elevation) |
| Protection | 15KV ESD Protection
6KV Lightning Protection |
| Enclosure | Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design |
| Wireless Standards | IEEE 802.11a/n |
|---|---|
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
| Frequency | 5.15~5.85GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
| Transmission Power | Max. 25dBm (Adjustable power by 1dBm) |
| Network Configuration | WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding |
|---|---|
| Wireless Configurations | Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Management Features | Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| System Tools | Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog |
| Dimensions(W x D x H) | 85.8×43.9×29.7 mm |
|---|---|
| Interfaces | 1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
