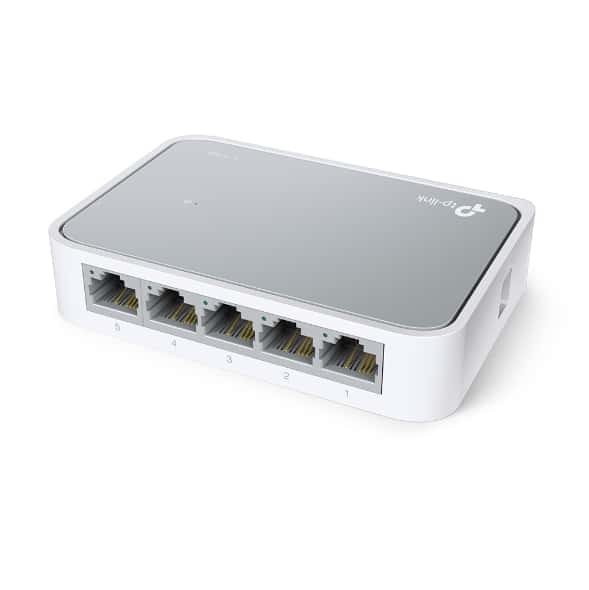

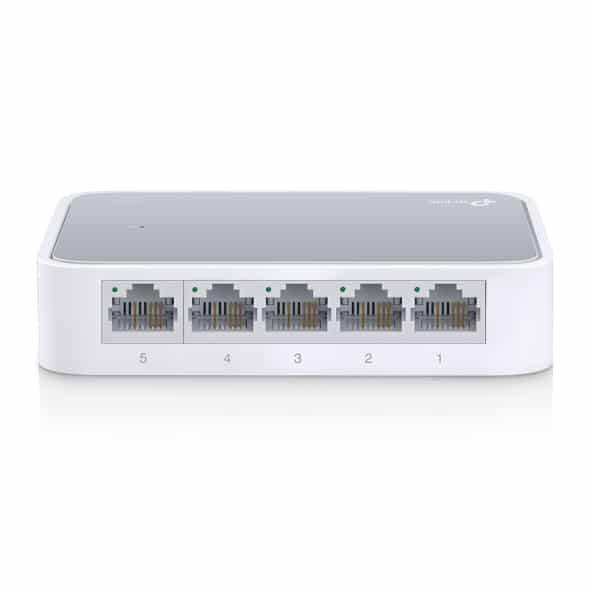

5-Port 10/100Mbps Desktop Switch – TPLINK TL-SF1005D
- Item Code: 101567
- Brand: TPLINK
- Model: SF1005D
- Item Condition: New
- Color: White
- Power Supply: External Power Adapter(Output: 5.0VDC / 0.6A)
- Max. Power Consumption: 1.87W(220V/50Hz)
- Interface:
5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
- Fan Quantity: Fanless
- Transmission Method: Store and Forward
- Packaging: Carton Box
KSh 1,250.00
5-Port 10/100Mbps Desktop Switch – TPLINK TL-SF1005D:
Key Features:
- 5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop design
- Plug and play, no configuration required
Specifications
Brand: | TPLINK |
Model: | SF1005D |
Condition: | New |
Color: | White |
Interface: | 5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity: | Fanless |
External Power Supply: | External Power Adapter(Output: 5.0VDC / 0.6A) |
Max. Power Consumption: | 1.87W(220V/50Hz) |
Max Heat Dissipation: | 6.38BTU/h |
Advanced Features: | Green Technology
802.3X Flow Control, Back Pressure |
Transmission Method: | Store and Forward |
Dimensions (WxDxH): | 4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm) |
Certification: | FCC, CE, RoHs |
Environment: | 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
Packaging: | Carton box |
Included in Package: | 5-Port 10/100Mbps Desktop Switch
Power Adapter Installation Guide |
Country of Origin: | China |
More info here…
Related Names: | 5-Port 10/100Mbps Desktop Switch – TPLINK TL-SF1005D |
Ranking Keywords: | 5-Port 10/100Mbps Desktop Switch |
Related Search: | 5-Port 10/100Mbps Desktop Switch – TP-LINK TL-SF1005D |
