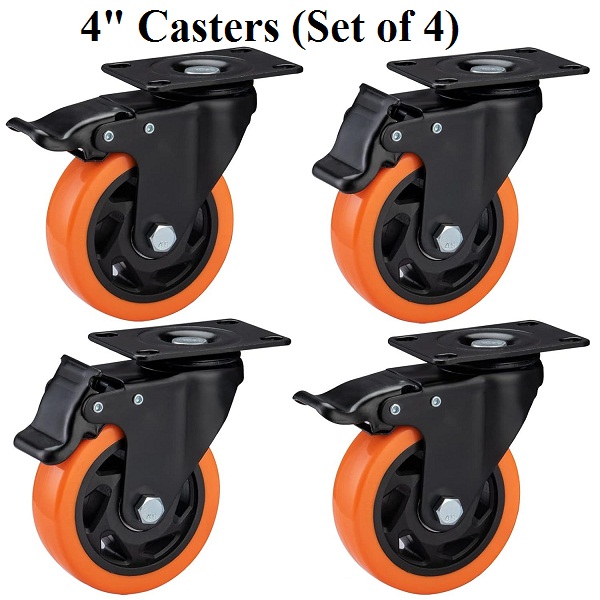

4inch Orange Swivel Caster with Polyurethane Wheel and Locking Brake (Set of 4Pieces): This Caster has a wheel with a hard polypropylene core for strength with a polyurethane tread that combines the abrasion resistance of plastic with the shock-absorbing qualities of rubber. Use them on smooth or rough floors and in areas with debris.

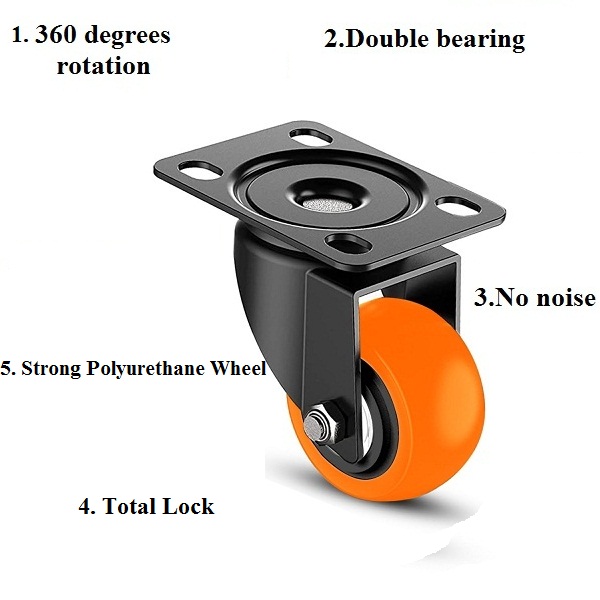

Swivel casters have double-ball bearings for the smoothest swiveling. Shielded bearings protect the bearing from dust and debris.

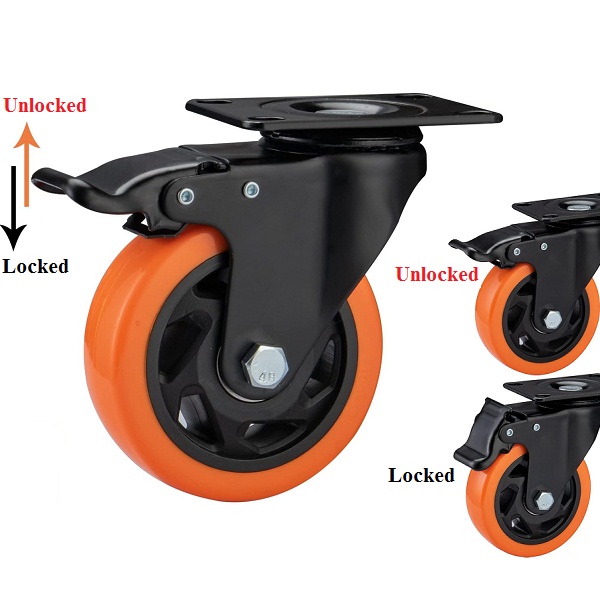

Casters with wheel brake apply pressure to the wheel to stop movement, while casters with total lock brake the wheel and lock the swivel with one press of the foot pedal.
Specifications
| Mount Type: | Plate |
| Caster Type: | Swivel |
| No. of Wheels: | 1 |
| Swivel Construction: | Kingpin |
| Swivel Bearing Type: | Double Ball Raceway Design |
| Brake/Lock Type: | Total Lock (Both Wheel Brake and Swivel Lock) |
| Brake Location: | Top Side |
| Brake Activation: | Foot Pedal |
| Wheel Color: | Orange |
| Wheel Diameter: | 4inch (100mm) |
| Wheel Width: | 32 mm |
| Wheel Type: | Tread on Core |
| Wheel/Tread Material: | Polyurethane Rubber |
| Tread Shape: | Flat |
| Wheel Core Material: | Polypropylene Plastic |
| Non-marking Wheels: | Yes |
| Wheel Bearing Type: | Ball |
| Wheel Bearing Seal Type: | Open |
| Wheel Bearing Material: | Steel |
| Hardness Rating: | Firm |

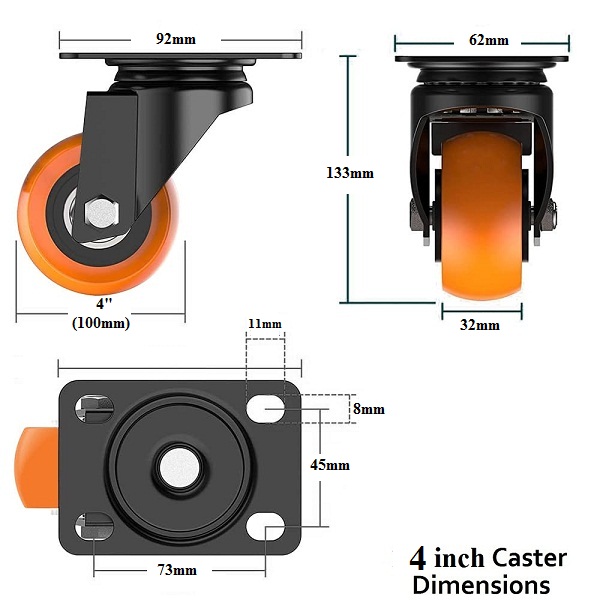

| Mount Height: | 133 mm |
| Mounting Plate Length: | 92 mm |
| Mounting Plate Width: | 62 mm |
| Mounting Holes: | 4 |
| Mounting Fastener Size: | M8 |
| Mounting Fasteners Included: | No |
| Mounting Holes Center-to-Center Length: | 73 mm |
| Mounting Holes Center-to-Center Width: | 45 mm |
| Frame Fabrication: | Stamped |
| Frame Material: | Black-Coated Steel |
| Max Load Capacity per Caster: | |
| For Surface Type: | Asphalt, Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile |
| Features: | Polyurethane Tread on polypropylene core Swivel Plate Stamped-steel frame Locking-Brake Unsealed Ball bearings |
| Suitable for: | Cart, Furniture, Workbench. |
| Country of Origin | Peoples Republic of China |
